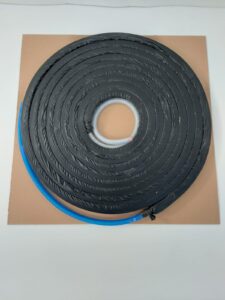

MQDuo-injekt injection systems
MQDuo-injekt is an active combination of two proven waterproofing systems in a concrete structure. Bentonite sealing tape 20x25 mm with injection hose in one product. This combination reliably solves the waterproofing of working joints in monolithic building structures. The standard active length of the MQDuo-injekt system is 8 m, or 12 m upon request.

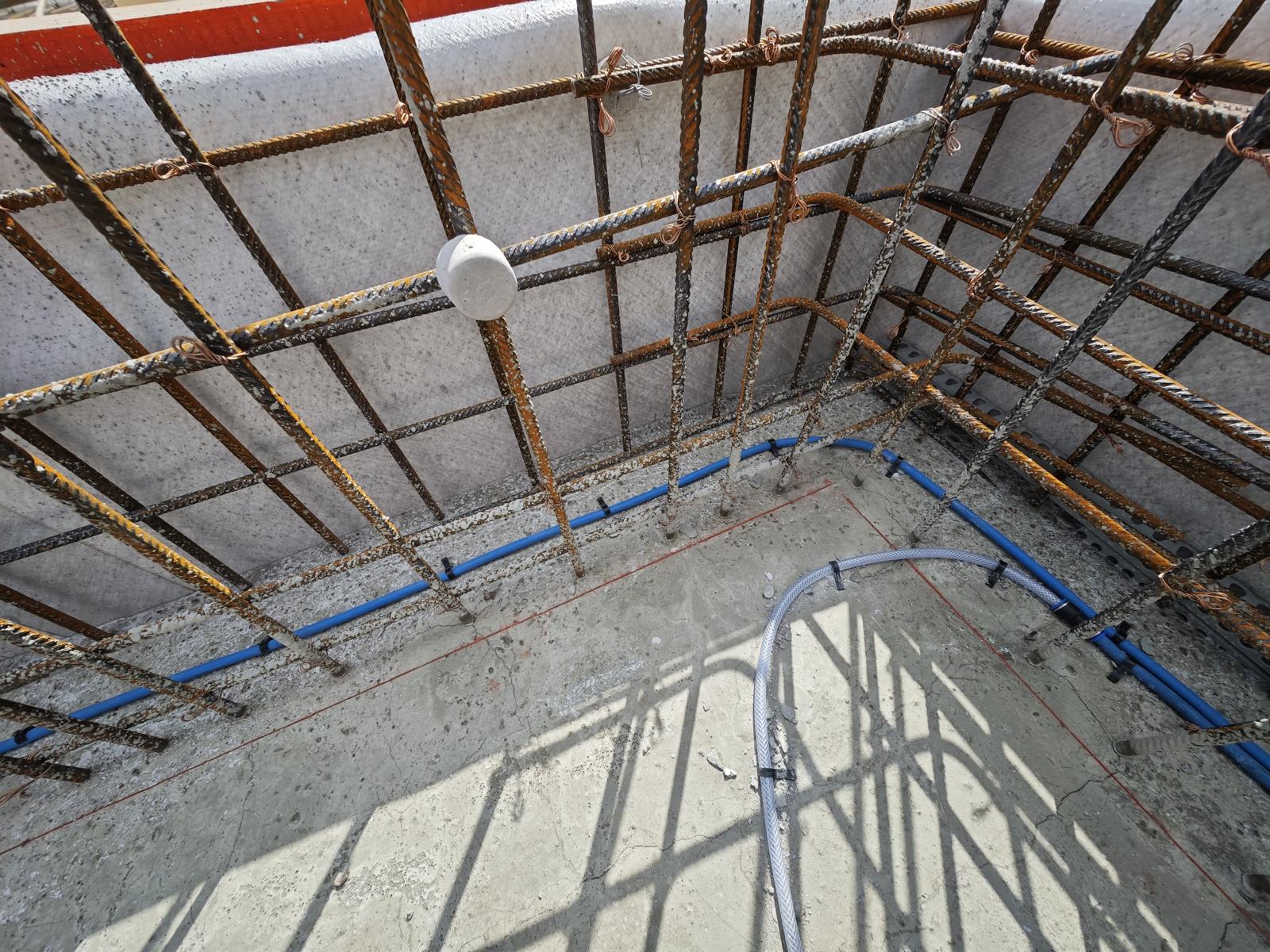

Injection hose IHQ 12/6

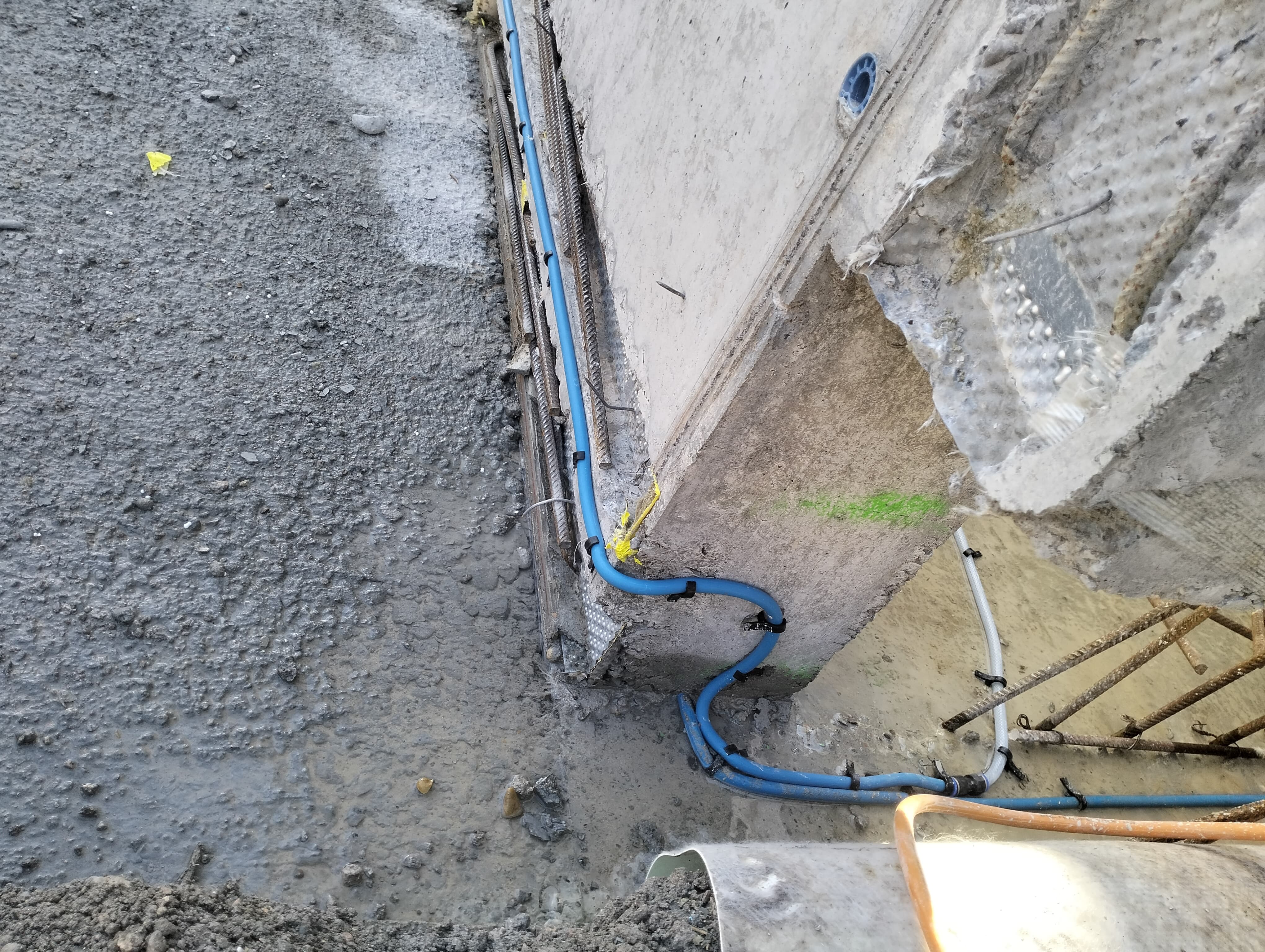

This injection waterproofing system is used to seal working joints in monolithic and prefabricated building structures. The IHQ 12/6 injection hose is used in working or expansion joints alone or in combination with waterstop sheets and bentonite tapes. It also supports multiple injection cycles.

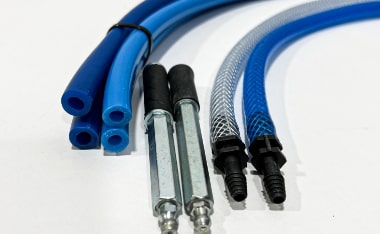

What are the advantages of the IHQ 12/6, IHS 12/6 and IHS 18/10 injection hose technology?
- Multiple injection cycles with the IHQ 12/6 type
- After concrete placement, the adequate cross-section of the conveying channel and outlet openings reduces internal grout friction, enabling economical injection lengths.
- The larger internal diameter of the IHS 18/10 injection hose allows for three times longer injection sections.
- Easy handling and installation
- Grout outlet is available on all sides
- The conically shaped outlet openings direct grout outward with minimal resistance.
- The smooth surface prevents unwanted bonding between the injection hose and concrete.
- Easy installation even after several years (the smooth surface resists encrustation within the concrete).
- Excellent cost-performance ratio.
Not sure which injection hose to choose? Are you interested in the price of masonry waterproofing by injection? Contact us.
